Trimble OEM
GNSS Receivers

Trimble

Trimble OEM GNSS Receivers
Single frequency Dual frequency Triple frequency
Name BD910 BD920 BD920-W3G BD930 BD930-UHF BD970 BD982

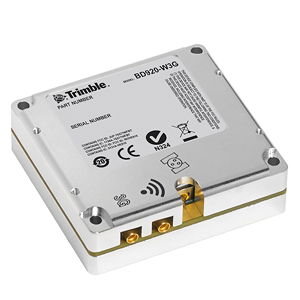

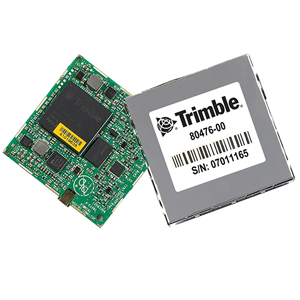

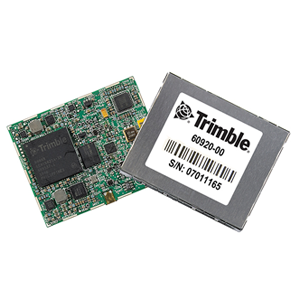

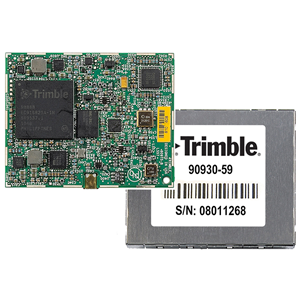

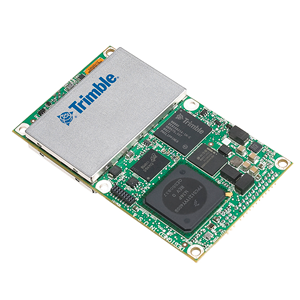

Picture Trimble BD910 Trimble BD920 Trimble BD920-W3G Trimble BD930 Trimble BD930-UHF Trimble BD970 Trimble BD982
Size (mm)
Weight (g)
41 x 41 x 7
19
51 x 41 x 7
24
60 x 55 x 19
54
51 x 41 x 7
30
60 x 55 x 15
60
100 x 60 x 11.6
62
100 x 84.9 x 11.6
92
Channels 220 220 220 220 220 220 2 x 220
Max. Update Rate (Hz) 20 20 20 20 20 50 50
GPS (Frequencies) L1 L1/L2 L1/L2 L1/L2/L5 L1/L2/L5 L1/L2/L5 L1/L2/L5
GLONASS L1 L1/L2 L1/L2 L1/L2/L3 L1/L2/L3 L1/L2 L1/L2/L3
Beidou B1 - - B1-B2 B1-B2 B1-B2 B1-B2
Galileo E1 E1 E1 E1 / E5A / E5B E1 / E5A / E5B E1 / E5A / E5B E1 / E5A / E5B
SBAS L1 L1 L1 L1/L5 L1/L5 L1/L5 L1/L5
QZSS L1 L1/L2 L1/L2 L1/L2/L5 L1/L2/L5 L1/L2/L5 L1/L2/L5
L-Band - - - - - -
RTX1 - - - IP IP IP IP / L
RTK
RTK - INS - - - - - - -
Heading / Attitude -/- -/- -/- -/- -/- -/- ✓/-
Communications - - 3G/WiFi - UHF-RX - -
Connector 80-pin 80-pin 44-pin 80-pin 44-pin 24-pin+6-pin 40-pin

Trimble OEM GNSS Receivers
GNSS + HEADING / ATTITUDE GNSS-INTERTIAL + ATTITUDE
Name BD982 BX982 MB-TWO ABX-TWO BD935-INS BX935-INS

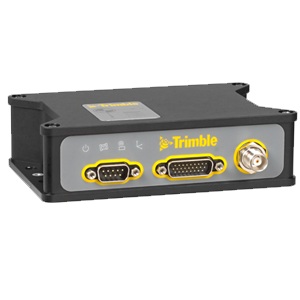

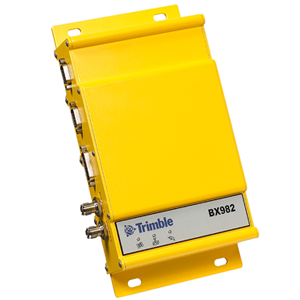

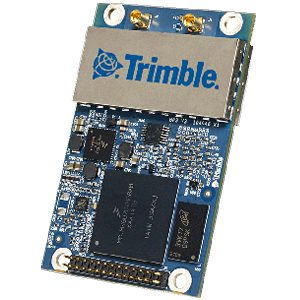

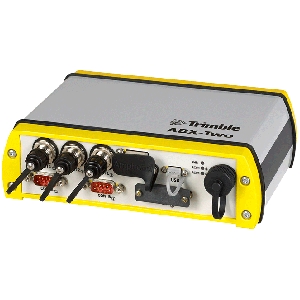

Picture Trimble BD982 Trimble BX982 Trimble MB-TWO Trimble ABX-TWO Trimble BD935-INS Trimble BX935-INS
Size (mm)
Weight (g)
100 x 84.9 x 11.5
92
261 x 140 x 55
1600
71 x 46 x 11
24
190 x 58 x 160
1270
67 x 60 x 15
60
149 x 93 x 43
660
Channels 2 x 220 2 x 220 2 x 220 2 x 220 2 x 220 2 x 220
Max. Update Rate (Hz) 50 50 50 50 100 100
GPS (Frequencies) L1/L2/L5 L1/L2/L5 L1/L2 L1/L2 L1/L2/L5 L1/L2/L5
GLONASS L1/L2/L3 L1/L2/L3 L1/L2 L1/L2 L1/L2/L3 L1/L2/L3
Beidou B1-B2 B1-B2 B1-B2 B1-B2 B1-B2 B1-B2
Galileo E1 / E5A / E5B E1 / E5A / E5B E1 / E5B E1 / E5B E1 / E5A / E5B E1 / E5A / E5B
SBAS L1/L5 L1/L5 L1 L1 L1/L5 L1/L5
QZSS L1/L2/L5 L1/L2/L5 L1/L2 L1/L2 L1/L2/L5 L1/L2/L5
L-Band - -
RTX1 IP / L IP / L IP / L IP / L IP IP
RTK
RTK - INS - - - -
Heading / Attitude ✓/- ✓/- ✓/- ✓/✓ ✓/✓ ✓/✓
Communications - - - - - -
Connector 40-pin DE9 & DA26 28-pin Various 44-pin DE9 & DA26
