ATEX Zone I WLAN |
|
 |
|
 |

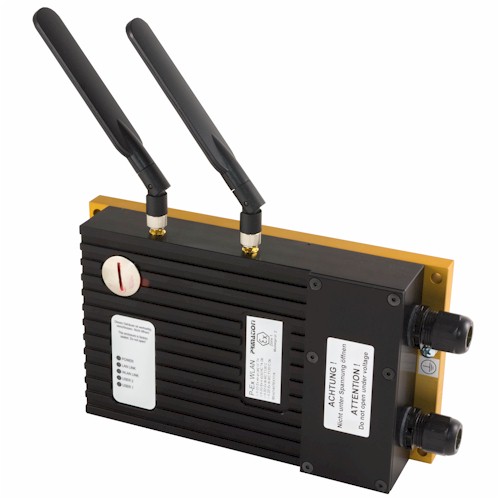

ATEX Zone I WLAN Access Point, Router or Bridge.
Point d'accès Wifi ATEX Zone 1
2 références :
- P-Ex WLAN-DC-A : Ethernet Port, DC, aluminum housing
- P-Ex WLAN-DC-S : Ethernet Port,DC, stainless steel housing
Points forts du ATEX Zone 1 WLAN Access Point
- Performance maximum et flexibilité dans un boitier compact
- Possibilité de faire fonctionner l'appareil en 2Ghz ou en 5Ghz
- Direct installation in ATEX Zone 1, 21 and M2
- No additional ex-proof housing required
- Inherent safe antenna connection
- Input voltage 18-28V DC
- IEEE 802.11 a/b/g/n
- Operation in 2GHz or 5GHz band
- Configuration via web interface or configuration software
- 680 MHz CPU for outstanding routing performance
- Security features : 64/128 bit WEP, TKIP and AES-CCM encryption, WPA, WPA2
- Stand alone or Controller operation
- Configurable as Access Point, Router or Bridge
- Encrypted Point-to-Point radio communication
Antennas :
- 2,4/5 GHz Antennas are scope of delivery
- Certified rod aerial available as accessory
|
 |
Certifications ATEX Zone I WLAN
Mining (Stainless steel only) :
- I M2 Ex eb qb [ib] I
- I M2 Ex e q [ib] I Mb
Gas :
- II 2G Ex eb qb [ib] IIC T4
- II 2G Ex e q [ib] IIC T4 Gb
Dust :
- II 2D Ex tb IIIC T135°C
- II 2D Ex tb IIIC T135°C Db
Regulatory Approval : IBExU14ATEX1114
Specifications ATEX Zone I WLAN
Ethernet :
- One 100 BaseT Port
- Dualband IEEE 802.11 a/b/g/n
- LED Link/Activity Status Indication
Operating Temperature :
- -20°C to +60°C
Input Voltage :
- DC : 18-28V DC, redundant
- Alternative Power over Ethernet (PoE), NOT IEEE 802.3af (no 48V)
- Recommended fuse : 1 A time lag fuse
Connectors :
- 1 x 100 Mbit copper
- 1 x Power
Dimensions : (heightxwidthxdepth)
- 270 mm x 150 mm x 60 mm
- 305 mm with antenna
Weight :
- 3,3 kg (aluminum housing)
- 4,5 kg (stainless steel housing)
Environment IP rating (EN60529) :
- IP 64
Télécharger la fiche technique du produit
