GPS200 - GPS, GLONASS, Galileo Splitter

Product Overview

• GPS L1 - L5, GLONASS, Galileo splitter
• Low Insertion Loss (0.2 dB avg)
• High Port-to-Port Isolation (30 dB avg)
• Excellent VSWR (1.10 : 1 avg)
• 15 VDC & 75 mA max on DC block port
• Tri Alloy Type N Female (Jack) 50 ohm

Overview

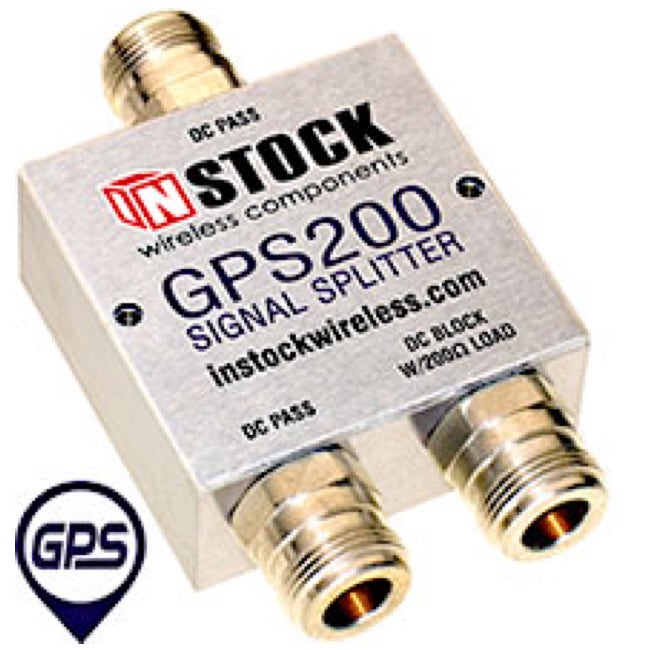

GPS200 is a two way, passive, GPS signal splitter ideal for splitting a GPS antenna signal between two receivers while providing a DC current path to power a remotely located active GPS antenna from one receiver while blocking the DC path from the other. Furnished with N type female connectors all ports. A special feature of this unit is the 200 ohm internal load which provides a current drain for the GPS receiver not powering the active antenna. Some GPS receivers incorrectly sense an antenna fault when there is no current draw. The 200 ohm internal load provides a simulated antenna current drain which prevents receiver faulting. Max voltage rating at the DC blocked port is 15 VDC; maximum current rating is 75 mA. Max voltage rating at the DC pass port is 50 VDC; max current rating is 2000 mA

Electrical

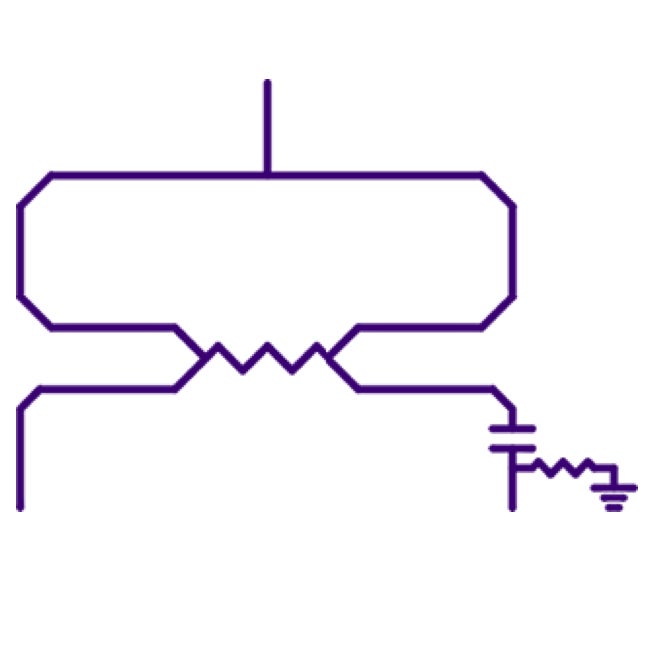

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the -3.01 dB power split), 22 dB min isolation, 1.25:1 max input VSWR and 1.15:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 3 degrees phase balance. Narrow band GPS performance in your band of interest may be even better. See 2 way GPS splitter test sweeps for details. DC block and 200 ohm internal load are specially designed to be RF transparent with negligable effect on performance.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm N type female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" dia (3.18 mm) through holes. RoHS compliant construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

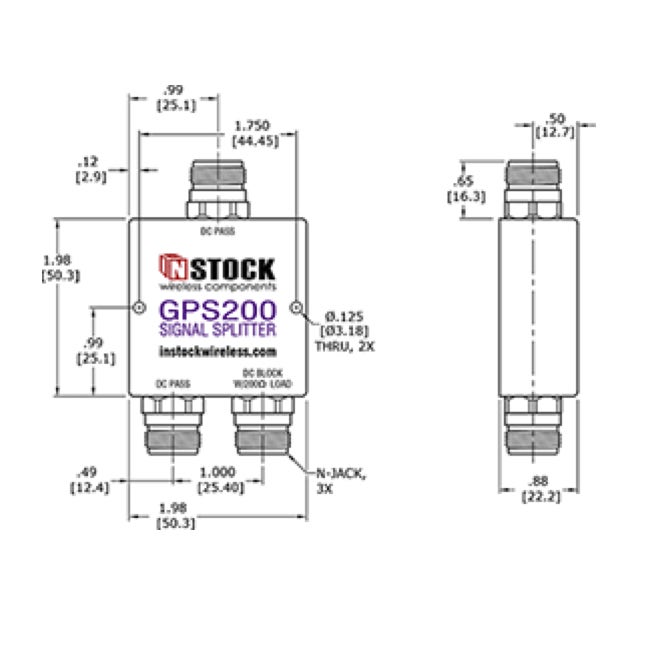

Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The type N female (jack) connectors extend 0.65" (16.3 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 174 grams. See 2 way GPS signal splitter outline drawing for more information.

Applications

Model GPS200 is a 2-way, passive, type N, GNSS splitter covering all frequencies from 1000 to 2000 MHz with best-in-class performance for GPS L1, L2, L3, L4, L5, GLONASS and Galileo global navigation satellite positioning system applications, and is deployed worldwide.
