Trimble Antennes GNSS

Vous trouverez ici les différentes antennes Trimble que nous proposons sous forme de tableau comparatif. Si vous souhaitez des informations complémentaires, cliquez sur la référence du produit pour avoir la fiche technique détaillée.

Tableau comparatif au format PDF.

Trimble Antennes GNSS Land/Vehicule/Marine

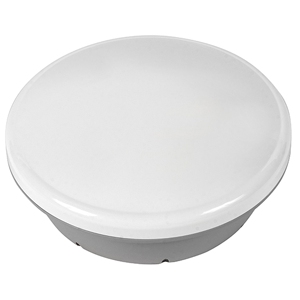

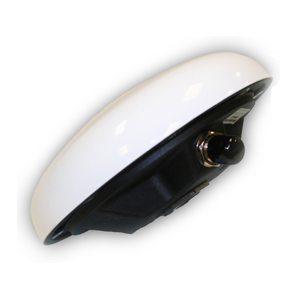

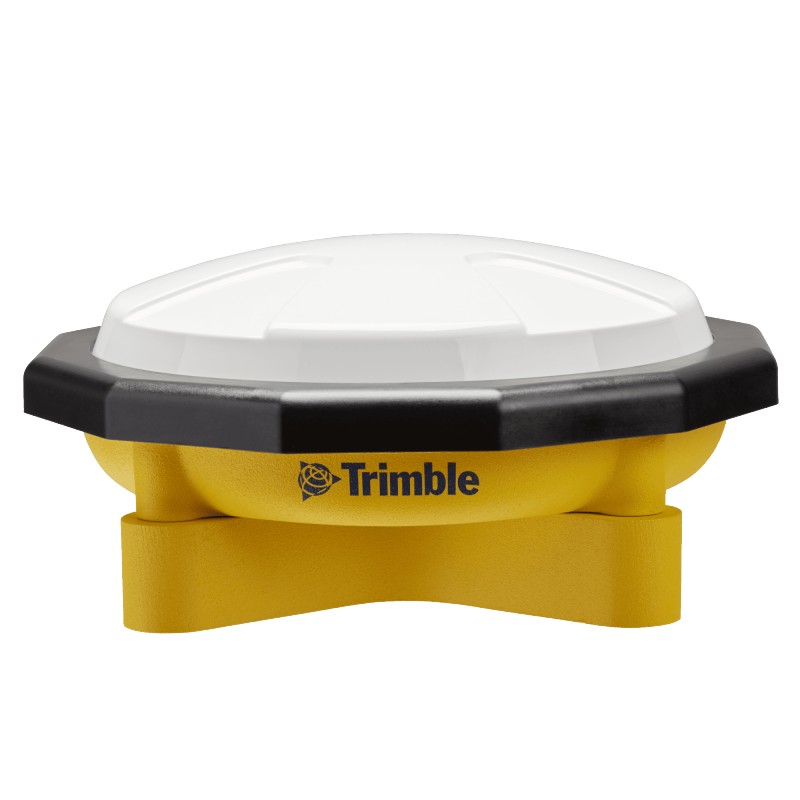

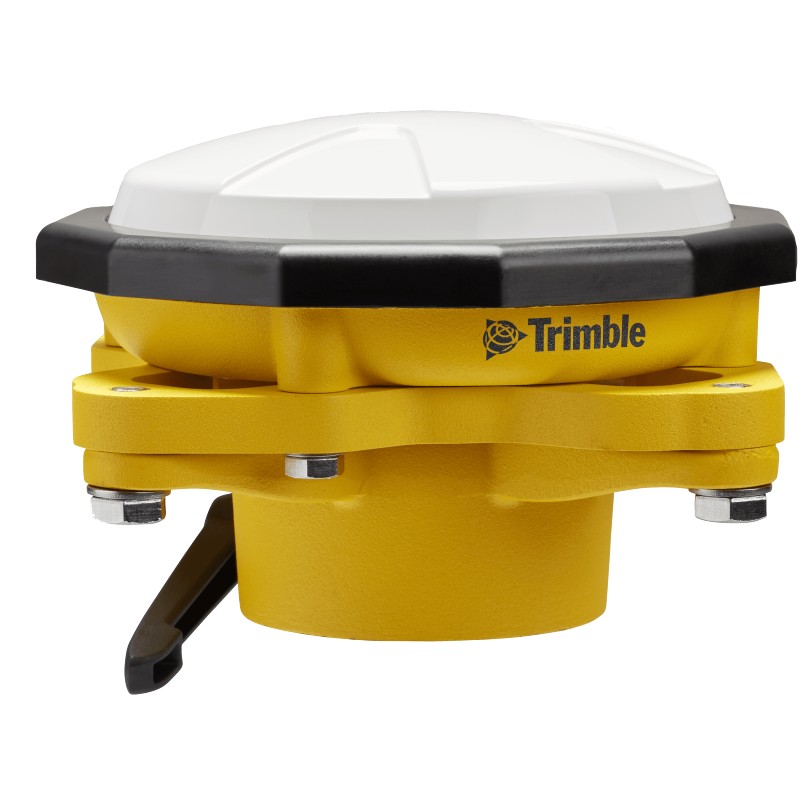

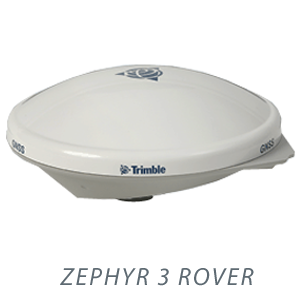

Référence	AG25	GA810	LV59	GA830	Zephyr 3 Rover	Zephyr 3 Base	Zephyr 3 Rugged

Part Number	99038-00-INT	99810-30-INT	C03167	44830-00-INT	105000-50-INT	115000-50-INT	125000-10-INT	125000-30-INT
Design Type	Land / Vehicle	Land / Vehicle	Land / Vehicle	Marine/Land / Vehicle	Land / Vehicle	Land / Geodetic	Marine/Land / Geodetic	Marine/Land / Geodetic
Size (d) x thickness (cm Weight (kg)	16.1"x 7.6 0.57 kg	16.1"x 7.6 0.57 kg	14.6" x 3.9 0.48 kg	14.9" x 9.9 0.82 kg	16.5" x 7.6 0.64 kg	34.3" x 7.9 1.36 kg	21.9" x 12.5 incl. Mount 2.19 kg	18.7" x 8.6 incl. Mount 1.79 kg
Mounting Style	5/8" Tread	5/8" Tread + Magnets	5/8" Tread	5/8" Tread	5/8" Tread	5/8" Tread	3" Mast Mount	5/8" Tread
GPS	L1, L2, L5	L1, L2, L5	L1, L2, L5	L1, L2, L5	L1, L2, L5	L1, L2, L5	L1, L2, L5	L1, L2, L5
Glonass	L1, L2, L3	L1, L2, L3	L1, L2, L3	L1, L2, L3	L1, L2, L3	L1, L2, L3	L1, L2, L3	L1, L2, L3
Galileo	E1, E5a, E5b, E6	E1, E5a, E5b, E6	E1, E5a, E5b	E1, E5a, E5b, E6	E1, E5a, E5b, E6	E1, E5a, E5b, E6	E1, E5a, E5b, E6	E1, E5a, E5b, E6
BeiDou	B1, B2, B3	B1, B2, B3	B1, B2	B1, B2, B3	B1, B2, B3	B1, B2, B3	B1, B2, B3	B1, B2, B3
QZSS	L1, L2, L5, LEX	L1, L2, L5, LEX	L1, L2, L5	L1, L2, L5, LEX	L1, L2, L5, LEX	L1, L2, L5, LEX	L1, L2, L5, LEX	L1, L2, L5, LEX
IRNSS	L5	L5	L5	L5	L5	L5	L5	L5
SBAS	✓	✓	✓	✓	✓	✓	✓	✓
L-Band	✓	✓	✓	✓ & MSK Beacon	✓	✓	✓	✓
Phase Center	< 4mm Hor < 14mm Ver	< 4mm Hor < 14mm Ver	< 10mm	< 5mm Hor	< 2mm	< 2mm	< 2mm	< 2mm
Gain	48 dB	48 dB	39 dB	45 dB	50 dB	50 dB	50 dB	50 dB
DC-Feed	3.4 V - 12V 130 mA	3.4 V - 12V 130 mA	4.2 V - 15V 65 mA	5.5 V - 18V 110 mA	3.5 V - 20V 125 mA	3.5 V - 20V 125 mA	3.5 V - 20V 125 mA	3.5 V - 20V 125 mA
Special features	3 Magnets and Thread	Thread only	-	Special Filtering, 75g Shock	Special Filtering	Special Filtering	Special Filtering, 75g Shock

Trimble Antennes GNSS Aviation

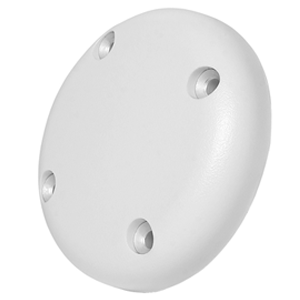

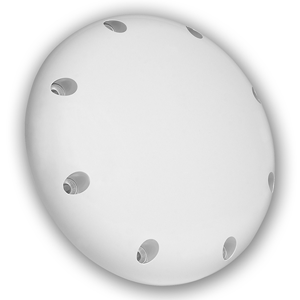

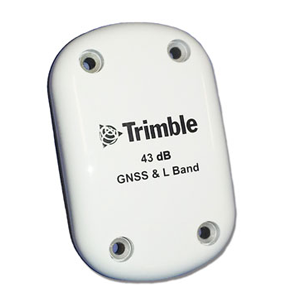

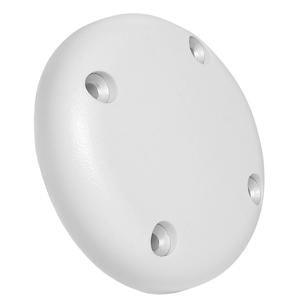

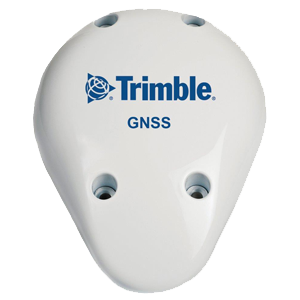

Référence	AV16	AV17	AV28	AV33	AV34	AV37	AV39	AV59

Part Number	120982-16	120982-17	112735	83553	86362	82745-10 (Int)	105728-10	C02992 (white) 98042 (green)
Design Type	UAV/UAS	UAV/UAS	Aviation	Aviation	Aviation	Aviation ARINC 743 TSO certified	Aviation ARINC 743 TSO certified	Aviation
Size (d) x thickness (cm) Weight (kg)	4.45" x 6.24 37 g	4.45" x 6.24 42 g	6.6"x 2.1 185 g	8.9"x 2.1 200 g	8.9"x 2.1 210 g	11.9 x 7.6 x 2.3 283 g	14.27 x 11.1 x 3.76 390 g	14.6"x 3.9 300 g
Mounting Style	SMA Male	SMA Male	3/4" through Hole Mount	Bulkhead/Flush	Bulkhead/Flush	Bulkhead/Flush ARINC 743 Footprint	Bulkhead/Flush ARINC 743 Footprint	Bulkhead/Flush
GPS	L1, L2	L1, L2, L5	L1, L2, L5	L1	L1, L2	L1, L2	L1, L2, L5	L1, L2, L5
Glonass	L1, L2	L1, L2, L3	L1, L2, L3	L1	L1, L2	L1, L2	L1, L2, L3	L1, L2, L3
Galileo	E1	E1, E5a, E5b	E1, E5a, E5b	E1	E1	E1	E1, E5a, E5b	E1, E5a, E5b
BeiDou	B1	B1, B2	B1, B2	B1	B1	B1	B1, B2	B1, B2
QZSS	L1, L2	L1, L2, L5	L1, L2, L5	L1	L1, L2	L1, L2	L1, L2, L5	L1, L2, L5
IRNSS	-	L5	L5	-	-	-	L5	L5
SBAS	✓	✓	✓	✓	✓	✓	✓	✓
L-Band	✓	✓	✓	-	-	✓	✓	✓
Phase Center	< 10mm	< 10mm	< 10mm	< 10mm	< 10mm	< 10mm	< 10mm	< 10mm
Gain	35 dB	35 dB	37 dB	43 dB	43 dB	43 dB	38 dB	39 dB
DC-Feed	2.2V - 16V 21 mA	2.2V - 16V 21 mA	2.5V - 16V 20 mA	4.5 V - 18V 35 mA	4.5 V - 18V 35 mA	5.0 V - 15V 75 mA	4.2 V - 15V 130 mA	4.2 V - 15V 65 mA
Special features	-	-	-	-	-	-	Special Filtering	-
