Trimble BD930

Triple frequency receiver for mobile
positionning applications

Trimble BD930

The Trimble BD930 supports both triple frequency from the GPS and GLONASS constellations plus dual frequency from BeiDou and Galileo. Different configurations of the module are available. These include everything from an autonomous GPS L1 unit all the way to a four constellation triple frequency RTK unit.

Test Driver

Key Features:

220 Channels for multi-constellation GNSS support
Fully EMI shielded module
GPS, GLONASS, BeiDou, Galileo Support
Compact design for mobile applications
Flexible RS232, USB and ethernet interfacing
Centimeter level position accuracy
Supports FDE and RAIM

Multi constellation / Multi frequency GNSS

The Trimble® BD930 supports both triple frequency from the GPS and GLONASS constellations plus dual frequency from BeiDou and Galileo. As the number of satellites in the constellations grow the BD930 is ready to take advantage of the additional signals. This delivers the quickest and most reliable RTK initializations for 1–2 centimeter positioning. For applications that do not require centimeter accuracy the BD930 contains an advanced kalman fi lter PVT engine that delivers high accuracy GNSS, DGNSS positions in the most challenging environments such as urban canyons. Diff erent confi gurations of the module are available. These include everything from an autonomous GPS L1 unit all the way to a four constellation triple frequency RTK unit. Choose the receiver that suits your application and price point. All features are password-upgradeable, allowing functionality to be upgraded as your requirements change. The receiver also supports Fault Detection and Exclusion (FDE) and Receiver Autonomous Integrity Monitoring (RAIM) for safety-critical applications.

Compact full metal jacket design

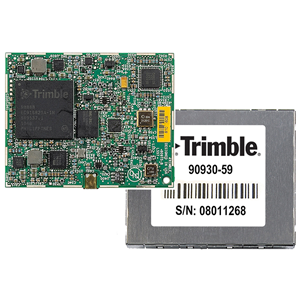

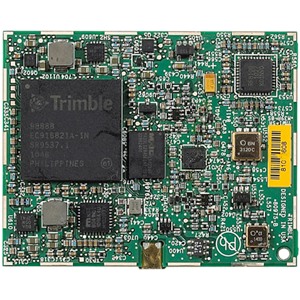

The Trimble BD930 GNSS receiver module has been designed for applications requiring centimeter accuracy in a very small package. Mobile platforms can now embed proven Trimble RTK technology using a shielded module with a 51 mm x 41 mm x 7 mm form factor. The Trimble BD930 is a complete drop-in, solder-down module manufactured and tested to Trimble’s highest quality standards. This design ensures the high quality GNSS signals are protected from the sources of EMI on the host platform. It also signifi cantly reduces radiated emissions which speeds compliance certifi cation and time to market.

Demonstrated performance

Industry professionals trust Trimble embedded positioning technologies as the core of their precision applications. With the latest Trimble-precise Maxwell™ 6 technology, the BD930 provides assurance of long-term future-proofi ng and trouble-free operation. Moving the industry forward, the Trimble BD930 redefi nes high-performance positioning:

On-board multipath mitigation
Proven low-elevation tracking technology

Flexible Interfacing

The Trimble BD930 was designed for easy integration and rugged dependability. Customers benefi t from the Ethernet connectivity available on the board, allowing high speed data transfer and confi guration via standard web browsers. USB and RS-232 are also supported. Just like other Trimble embedded technologies, easy to use software commands simplify integration and reduce development times.

TECHNICAL SPECIFICATIONS¹

220 Channels:
- GPS: L1 C/A, L2E, L2C, L5
- BeiDou B1, B2
- GLONASS: L1 C/A, L2 C/A, L3 CDMA
- Galileo: E1, E5A, E5B, E5AltBOC²
- QZSS: L1 C/A, L1 SAIF, L2C, L5
- SBAS: L1 C/A, L5
Advanced Trimble Maxwell 6 Custom Survey GNSS Technology
High precision multiple correlator for GNSS pseudorange measurements
Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
Proven Trimble low elevation tracking technology
1 USB 2.0 Device port
1 LAN Ethernet port:
- Supports links to 10BaseT/100BaseT auto-negotiate networks
- All functions are performed through a single IP address simultaneously—including web GUI access and raw data streaming
- Network Protocols supported
  - HTTP (web GUI)
  - NTP Server
  - NMEA, GSOF, CMR over TCP/IP or UDP
  - NTripCaster, NTripServer, NTripClient
  - mDNS/uPnP Service discovery
  - Dynamic DNS
  - eMail alerts
  - Network link to Google Earth
  - Support for external modems via PPP
4 x RS232 ports
- Baud rates up to 115,200
Up to 20 Hz raw measurement & position outputs
Reference outputs/inputs
- CMR, CMR+, sCMRx, RTCM 2.1, 2.2, 2.3, 3.0, 3.1¹²
Navigation outputs
- ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS and Binary: Trimble GSOF
Control Software: HTML web browser, Internet Explorer, Firefox, Safari, Opera, Google Chrome
1 Pulse Per Second Output
Event Marker Input Support
Supports Fault Detection & Exclusion (FDE), Receiver Autonomous Integrity Monitoring (RAIM)
10 MHz External Frequency Input

ORDERING INFORMATION

Module Part Number : 90930-XX
Module : Trimble BD930 GNSS available in a variety of
configurations from L1 SBAS upwards
Evaluation Kit : Includes interface board and power supply

PERFORMANCE SPECIFICATIONS

Time to First Fix (TTFF)⁷
- Cold Start⁸ : <45 seconds
- Warm Start⁹ : <30 seconds
- Signal Re-acquisition : <2 seconds
Velocity Accuracy^{3 , 4}
- Horizontal : 0.007 m/sec
- Vertical : 0.020 m/sec
Acceleration : 11g
Maximum Operating Limits¹⁰
- Velocity : 515 m/sec
- Altitude 18,000 m

POSITIONING SPECIFICATIONS³

RTK initialization time³ : typically <1 minute
RTK initialization reliability³ : >99.9%

PHYSICAL AND ELECTRICAL CHARACTERISTICS

Size : 51 mm x 41 mm x 7 mm
Power : 3.3 V DC +5%/–3%
Typical 1.7 W (L1/L2 GPS + L1/L2 GLONASS)
Typical 2.2 W (L1/L2/L5 GPS/GLONASS/BeiDou/Galileo)
Weight : 30 grams
Connectors
- I/O : 80 pin Narrow Pitch Panasonic Socket
- Antenna : MMCX receptacle
Antenna LNA Power Input
- Input voltage : 3.3 V DC to 5 V DC
- Maximum current : 400 mA
Minimum required LNA Gain : 31.0 dB

ENVIRONMENTAL CHARACTERISTICS¹¹

Temperature
- Operating : –40 °C to +85 °C
- Storage : –55 °C to +85 °C
Vibration : MIL810F, tailored
Random 6.2 gRMS operating
Random 8 gRMS survival
Mechanical shock : MIL810D
±40 g operating
±75 g survival
Operating Humidity : 5% to 95% R.H. non-condensing, at +60 °C

¹Trimble BD930 is available in a variety of software configurations. Specifications shown reflect full capibility
²Developed under a License of the European Union and the European Space Agency
³May be affected by atmospheric conditions, signal multipath, and satellite geometry. Initialization reliability is continuously monitored to ensure highest quality
⁴1 sigma level, when using Trimble Zephyr 2 antennas.
⁵At maximum output rate
⁶GPS only and depends on SBAS System performance. FAA WAAS accuracy specifications are <5 m 3DRMS
⁷Typical observed values.
⁸No previous satellite (ephemerides / almanac) or position (approximate position or time) information
⁹Ephemerides and last used position known
¹⁰As required by the U.S. Department of Commerce to comply with export licensing restrictions
¹¹Dependent on appropriate mounting/enclosure design.
¹²Input only network correction
¹³There is no public GLONASS L3 CDMA ICD. The current capability in the receivers is based on publicly available information. As such, trimble cannot guarantee that these receivers will be fully compatible.
