Trimble BX982

Dual-antenna GNSS module for precise
position and heading applications

Trimble BX982

The Trimble® BX982 GNSS receiver enclosure is a multi-channel, multi-frequency OEM GNSS receiver which allows OEM’s and System Integrators to rapidly integrate centimeter level positioning and precise heading into their application. The BX982 supports GPS L1/L2/L5, GLONASS L1/L2/L3, BeiDou B1, B2 and Galileo signals.

Test Driver

Key Features:

Easy to integrate rugged package
Two 220 channel Maxwell 6 chips for multi-constellation GNSS support
OmniSTAR VBS / XP / G2 / HP support
Dual antenna inputs for precise heading calculation
Centimeter level position accuracy
Convenience of Ethernet connectivity
Supports FDE and RAIM

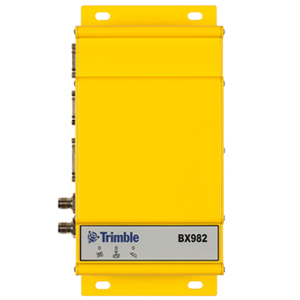

BX982 GNSS rugged receiver enclosure

The Trimble® BX982 GNSS receiver enclosure is a multi-channel, multifrequency OEM GNSS receiver which allows OEM’s and System Integrators to rapidly integrate centimeter level positioning and precise heading into their application. The Trimble BX982 supports GPS L1/L2/L5, GLONASS L1/L2/L3 and BeiDou B1, B2 signals. In addition, Trimble is committed to the next generation of modernized GNSS configurations by providing GALILEO compatible products available for customers well in advance of GALILEO system becoming operational. In support of this, the Trimble BX982 is capable of tracking Galileo signals for evaluation and test purposes.²

Dual-antenna input

Single antenna GNSS systems have difficulty determining where the antenna is positioned relative to the vehicle and object of interest, especially when dynamics are low. External sensors can be used to augment this however these tend to drift when static. Heading derived from dual-antenna GNSS measurements overcomes these issues and is now economically the right choice. The BX982 harnesses the power of the 220 channel Trimble Maxwell 6 Technology with dual chips supporting two antennas connected to the board. Independent observations from both antennas are passed to the processor where multi-constellation RTK baselines are computed. A single connection to the BX982 via RS232, USB, Ethernet or CAN delivers both centimeter accurate positions and less than a tenth of a degree (2 meter baseline) heading accuracy.

Flexible interfacing

The Trimble BX982 was designed for easy integration and rugged dependability. Customers benefit from the Ethernet connectivity available on the board, allowing high speed data transfer and configuration via standard web browsers. Just like other Trimble embedded technologies; easy to use software commands simplify integration and reduce development times. All software features are password-upgradeable, allowing functionality to be upgraded as your requirements change.

High integrity

The BX982 supports Fault Detection and Exclusion (FDE) and Receiver Autonomous Integrity Monitoring (RAIM) for safety-critical applications.

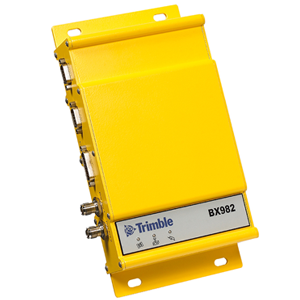

Rugged receiver enclosure

The Trimble BX982 packages a single BD982 receiver module in a rugged enclosure. The unit comes in an environmentally sealed enclosure that is very easy to install. The BX982 is rigorously tested to perform in harsh environmental conditions with the reliability you expect from Trimble.

TECHNICAL SPECIFICATIONS¹

Position Antenna based on 220 Channel Maxwell 6 chip:
- GPS: Simultaneous L1 C/A, L2E, L2C, L5
- BeiDou B1, B2
- GLONASS: Simultaneous L1 C/A, L2 C/A , L2 P, L3 CDMA¹³
- Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC²
- QZSS: L1 C/A, L1 SAIF, L2C, L5
- SBAS: Simultaneous L1 C/A, L5
Vector Antenna based on second 220 Channel Maxwell 6 chip:
- GPS: Simultaneous L1 C/A, L2E, L2C
- GLONASS: Simultaneous L1 C/A, L2 C/A, L2 P
- BeiDou: B1
Advanced Trimble Maxwell 6 Custom Survey GNSS Technology
High precision multiple correlator for GNSS pseudorange measurements
Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
1 USB
1 CAN port
1 LAN Ethernet port :
- Supports links to 10BaseT/100BaseT auto-negotiate networks
- All functions are performed through a single IP address simultaneously—including web GUI access and raw data streaming
- Network Protocols supported
  - HTTP (web GUI)
  - NTP Server
  - NMEA, GSOF, CMR over TCP/IP or UDP
  - NTripCaster, NTripServer, NTripClient
  - mDNS/uPnP Service discovery
  - Dynamic DNS
  - eMail alerts
  - Network link to Google Earth
  - Support for external modems via PPP
3 x RS232 ports
- Baud rates up to 460,800
1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 & 50 Hz positioning outputs (depends on installed option)
Up to 20 Hz raw measurement & position outputs
Reference outputs/inputs
- CMR, CMR+, sCMRx, RTCM 2.1, 2.2, 2.3, 3.0, 3.1¹²
Navigation outputs
- ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS and Binary: Trimble GSOF
Control Software: HTML web browser, Internet Explorer, Firefox, Safari, Opera, Google Chrome
1 Pulse Per Second Output

ORDERING INFORMATION

Module Part Number : 85992-XX
Evaluation Kit : Trimble BX982 GNSS receiver enclosure available in a
variety of configurations from L1 DGPS upwards

PERFORMANCE SPECIFICATIONS

Time to First Fix (TTFF)⁷
- Cold Start⁸ : <45 seconds
- Warm Start⁹ : <30 seconds
- Signal Re-acquisition : <2 seconds
Velocity Accuracy^{3 , 4}
- Horizontal : 0.007 m/sec
- Vertical : 0.020 m/sec
Acceleration : 11g
Maximum Operating Limits¹⁰
- Velocity : 515 m/sec
- Altitude 18,000 m

POSITIONING SPECIFICATIONS³

RTK initialization time³ : typically <1 minute
RTK initialization reliability³ : >99.9%

HEADING SPECIFICATIONS

PHYSICAL AND ELECTRICAL CHARACTERISTICS

Size : 261 mm x 140 mm x 55 mm
Power : 9 V DC to 28 V DC
Maximum 4.1 W
Weight : 1.6 kg

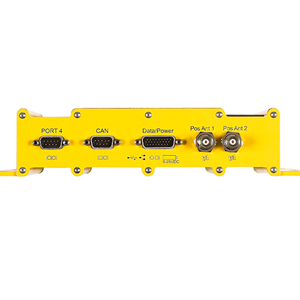

Connectors
- I/O : D-sub DE9 and DA26
- Antenna : TNC (Female)
Antenna LNA Power Output
- Voltage : 5 V DC

ENVIRONMENTAL CHARACTERISTICS¹¹

Temperature
- Operating : –40 °C to +85 °C
- Storage : –55 °C to +85 °C
Vibration : MIL810F, tailored
Random 6.2 gRMS operating
Random 8 gRMS survival
Mechanical shock : MIL810D
±40 g operating
±75 g survival
Operating Humidity : 5% to 95% R.H. non-condensing, at +60 °C
IP Rating : IP67

¹Trimble BX982 is available in a variety of software configurations. Specifications shown reflect full capibility.
²Developed under a license of the European Union and the European Space Agency
³May be affected by atmospheric conditions, signal multipath, and satellite geometry. Initialization reliability is continuously monitored to ensure highest quality
⁴1 sigma level, when using Trimble Zephyr 2 antennas.
⁵At maximum output rate
⁶GPS only and depends on SBAS System performance. FAA WAAS accuracy specifications are <5 m 3DRMS
⁷Typical observed values.
⁹Ephemerides and last used position known. ⁸No previous satellite (ephemerides / almanac) or position (approximate position or time) information
¹⁰As required by the U.S. Department of Commerce to comply with export licensing restrictions. ¹¹Dependent on appropriate mounting/enclosure design. ¹²Input only network correction. ¹³There is no public GLONASS L3 CDMA ICD. The current capability in the receivers is based on publicly available information. As such, Trimble cannot guarantee that these receivers will be fully compatible.
