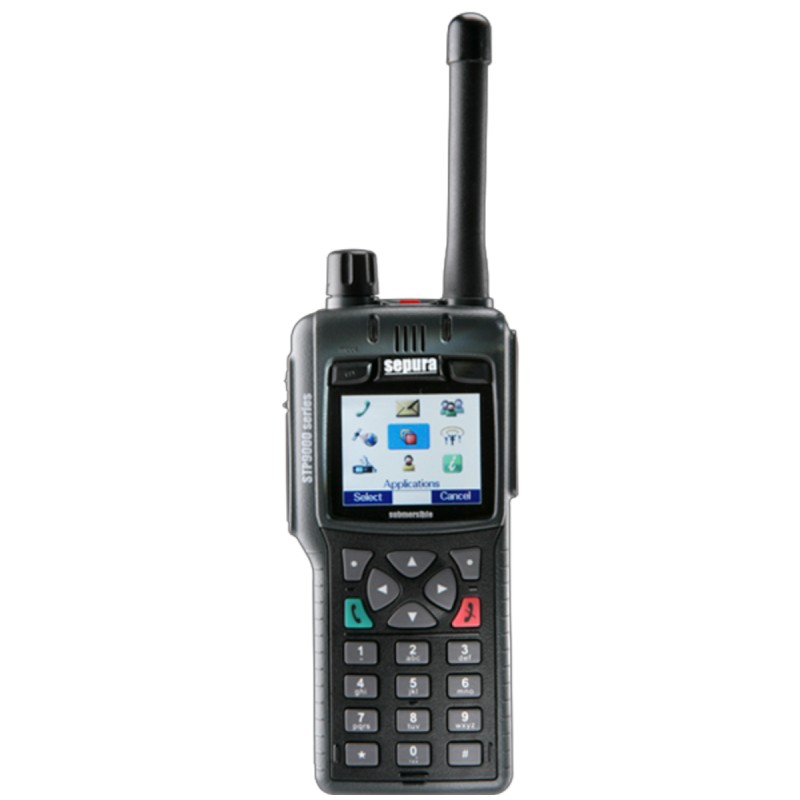

Sepura STP9000
Portatif

sepura
  • Sepura Portatif STP9000
Prix nous consulter Sepura STP9035 - 344 à 400 MHz Référence : STP9035
Sepura STP9038 - 380 à 430 MHz Référence : STP9038
Sepura STP9040 - 407 à 473 MHz Référence : STP9040
Sepura STP9080 - 806 à 870 MHz Référence : STP9080

Portatif TETRA

  • Sepura Portatif STP9000
Suivant Précédent

Robuste, résistant et doté de nombreuses fonctionnalités, le STP9000 de Sepura vous aide à relever les défis les plus ardus de la journée de travail.

Avec la protection IP67, le STP9000 continue de fonctionner après immersion dans jusqu'à 1 m d'eau pendant 30 minutes maximum. Son clavier complet offre un son puissant, une autonomie de batterie exceptionnelle et des fonctions améliorant la sécurité telles que Wake-on-Alarm - qui commute la radio allumée et lance un appel d'urgence en appuyant simplement sur un bouton - sont ses autres caractéristiques.
La technologie haptique produit une réponse physiquement détectable à la pression d'une touche et la fonction "Twist" and Zoom permet de visualiser les images en plein écran lorsque l'orientation de la radio est modifiée.

Description du portatif TETRA STP9000 de Sepura

Le STP9000 est le produit phare d'une série très innovante de radios portables TETRA, conçues pour les utilisateurs qui veulent le meilleur. Imperméable, submersible, étanche à la poussière et résistant à la mer, le STP9000, classé IP67, fournit la dernière technologie intelligente dans un boîtier résistant à toutes les utilisations sur le terrain.

    Points forts du STP9000 :
  • Robustesse
  • Facilité d'utilisation
  • Clavier et affichage intelligents
  • Gestion des ressources et des informations
  • Amélioration de la sécurité des utilisateurs
  • Côut d'utilisation réduit
  • Capacité de localisation intérieure
  • Technologie intelligente : Bluetooth, SDAs, carte MicroSD.

Caractéristiques techniques du portatif TETRA STP9000 de Sepura

Les caractéristiques produits sont en anglais pour respecter les données du fabricant.

Spécifications techniques
DIMENSIONS Height: 133mm (excluding antenna and rotary)
Width: 61mm (54mm)
Depth – standard battery: 32mm
Depth – high-capacity battery: 37.5mm
WEIGHTWith standard battery: 250g (excluding antenna)
With high-capacity battery: 275g (excluding antenna)
TETRA FREQUENCY BANDS380-430MHz – STP9038
407-473MHz – STP9040
POWER SUPPLY7.4V (nominal) lithium polymer battery packs
Intelligent reporting batteries
1160mAh standard battery1
1880mAh high-capacity battery1
TETRA RF PERFORMANCERF power:
MS power Class 3L (1.8W)
MSPD power Class 3L (1.8W)
DMO repeater power Class 3L (1.8W)

RF power customisable for:
  • TMO/DMO/DM-repeater
  • Adaptive power control
  • Receiver class A & B
  • Receiver static sensitivity -112dBm ( -115dBm typical)
  • Receiver dynamic sensitivity -103dBm (-106dBm typical)
AUDIO PERFORMANCESpeaker audio power: > 1W
Rugged accessory connector (RAC)2
ENVIRONMENTAL PERFORMANCEOperational temperature (conformance tested) -20°C to +60°C
Operational temperature (min./max.) -30°C to +65°C3
Storage temperature -40°C to +85°C4

Dust & water protection to IP65 & IP67
  • IPx5 (weatherproof)
  • IP6x (dustproof)
  • IPx7 (waterproof – submersible, 1m depth for 30mins)
Shock, drop & vibration: ETS 300 019 5M3
Salt fog: MIL810E 509.4(l); duration 24hr salt5
Salt water: submersion, rated at 1m depth for 30 mins5
RFID PERFORMANCEInternal tag: HITAG S2048, short range, 125 KHz, ISO11784 & ISO11785 compliant
Range: 1 cm from back of individual radio box pack
User accessible storage: 2048 bits, passive technology pre-programmed (user editable):
  • 32-bit unique identifier
  • Serial number
  • Hardware code
  • TEI
PRODUCT OPTIONSGPS
Man-Down alarm7
DM-Repeater Type-1A
Air Interface encryption
End-to-end encryption
End-to-end encryption smart card support
Wide range of languages supported
Micro SDHC card up to 32GB
User-changeable coloured bezels for easy identification
DISPLAY & USER INTERFACE Screen:
  • 30 x 38mm active LCD area
  • High-resolution display (176 x 220 pixels)
  • Sunlight-visible Transflective TFT display, 262K colours
Menu:
  • Intuitively-enhanced user interface
  • " Favourite feature" shortcut & event notification bar, with missed call indicator LED
  • Choice of three user interface presentation styles (compatibility, grid & list modes)
  • Customisable top-level screen content
  • Customisable SmartMenus supporting 100s of intuitively arranged soft keys
  • Quick change menu for rapid & intuitive selection of talkgroups, status & user profile
  • Custom zoom/normal, large & very large mode text
  • " Twist & zoom" portrait image viewer
  • Night mode to reduce low-light glare in vehicles
  • Invert display for easy viewing whilst lapel- or belt-mounted
  • Customisable lock screen image
  • Customisable user profiles e.g. " covert " , " quiet " , " in a meeting " & " loud "
Controls:
  • Dual-language alpha-numeric keypad option
  • Four-way navigation keys
  • Three context keys for intuitive menu interaction
  • Three configurable feature-activation side keys: blind-find & glove-friendly
  • 12 configurable keypad feature activation keys
  • Manual & automatic keypad lock
  • Hard-capped keys
  • Large, easy reach, blind find, glove-friendly PTT
  • Blind-find emergency key
  • Single rotary
Haptics:
  • Vibrate on call/message
  • Haptic technology for enhanced key tactility when used with gloves
TALKGROUP MANAGEMENT
  • 9900 talkgroups including TMO & DMO
  • 50 DGNA
  • 5000 folders
  • Five multi-level structure
  • Quick groups/quick folder
  • Home group
  • Group toggle
  • Talkgroup stack toggle
Talkgroup selection:
  • Single or user-defined scan list (UDSL)
  • 20 UDSL each with 10 talkgroups
Folder selection:
  • 4987 folder scan list of 22 scanned talkgroups each
  • Each folder scan list with 75 talkgroups
  • 10 editable folder scan lists
  • Background talkgroups in folder scan list
NETWORKMultiple home networks
Up to 30 configurable networks
Simple & mutual authentication
Aliasing with Radio User Assignment (RUA)
  • Radio user-initiated log-on/log-off process
  • Dispatcher-initiated log-on/log-off process
Preferred location area
Fixed location area
PHONEBOOK2000 contact names
Up to six numbers per contact (to a max. of 6000 stored numbers)
64 contact folders including favourite folder
VOICE SERVICESIndividual/group/broadcast call
Half-duplex (individual & group)
Route pre-emptive half-duplex call to internal loudspeaker
Half-duplex audio toggle
Full-duplex calls (to MS & PABX/PSTN)
Full-duplex auto-answer
Independent volume control
Speed, one-touch & direct dialling
Call priority
Calling/talking party identification
DTMF/MSISDN/abbreviated dialling
Ambience listening
Privacy & whisper modes
Group focus
Transmit inhibit with on/off status messaging
Call history
Multiple alert tones
DMO SERVICESDMO individual & group call
DMO emergency & intelligent emergency call
DM-repeater inter-working call
DM-gateway inter-working call
Channel-only talkgroup
DM-Gateway talkgroup pair
DATA SERVICES & APPLICATIONSSingle- & multi-slot packet data
WAP support:
  • WAP 2.0
  • WAP browsing via TETRA
  • WAP shortcuts embedded in SDS for instant data access
  • WAP access OTA via TETRA or second data bearer
WAP onboard:
  • Micro SDHC-based WAP sites for instant access to intelligence, images, maps & text
  • Data maintained by Radio Manager2 PEI access
  • High-speed programming
Messaging:
  • SDS messaging (in TMO & DMO)
  • Picture Messaging via SDS or packet data
  • Concatenated SDS messaging
  • Auto-capitalisation in SDS text entry
  • Status messaging (in TMO & DMO)
  • 350 predefined status messages (up to 140 Unicode characters)
  • Up to 30 quick status messages
Callout & paging:
  • TETRA simple callout/full callout/paging alert
AT commands:
  • ETSI & enhanced commands
  • via PEI serial port profile over Bluetooth & USB
  • Voice call control supported
Over the air control & programming:
  • Status-triggered functions
  • Group management via Sepura Public Profile (SPP)
  • Reprogramming over Wi-Fi with Radio Manager2
Battery status at start-up
Missed event application
Major radio status change notification application
User-expandable up to 32GB via Micro SDHC card
SAFETY FEATURES & APPLICATIONS Emergency call:
  • Pre-emptive priority
  • Hands-free live mic operation
  • Emergency voice call & alerting to current or defined talkgroup
  • Emergency status/SDS/location report to defined control user/group
  • Full-duplex or half-duplex emergency calls
  • Manual activation via red emergency key
  • Automatic activation via Man-Down7 option
  • Automatic TMO/DMO selection
  • Emergency through DM-repeater/DM-gateway
  • Loud, distinct audio & visual indication
  • Silent alarm call
Man-Down7:
  • Immobility detection
  • Unusual inclination detection
  • Customisable alerting (see Emergency Call Capability)
Lone-Worker feature
Blind-find emergency button
Wake-on-Alarm allows user to switch on radio & signal an emergency in one action
LOCATION-BASED SERVICES GPS integrated option -192dBw (-162dBm) tracking sensitivity Over-The-Air GPS reporting:
  • ETSI location standard reporting (LIP)
  • NMEA & Sepura compact messaging
Integral antenna plus active external antenna input option for use in sky obscured vehicles
GPS-based compass
On-board mapping capable6
Enhanced start-up & acquire through " predictive ephemeris"
RFID tag equipped
Glonass and BeiDou2 support6
SECURITY SERVICES TETRA:
  • Authentication
  • Class 1, 2,3 & 3G TETRA security
  • Air Interface encryption TEA1/2/3/49
  • Smart card E2E encryption9
  • Embedded E2E encryption9
  • Enhanced security module (ESM)
  • In-country E2E Encryption algorithm9
  • Multiple E2E algorithm9
  • Temporary disable (stun)
  • Permanent disable (kill)
  • 600KEK crypto groups
DM-REPEATER SERVICES (LICENCE REQUIRED)DMO voice repeated
Status & SDS repeated
Group status & SDS repeated
Type 1A efficient operation over one RF channel
Presence signal support
Emergency call
Monitoring & participation in calls
CONNECTIVITYTETRA voice & data
Bluetooth support for voice & data
USB support for data
Accessory connections via rugged accessory connector (RAC)2
Audio & data connection via bottom connector (sDAC)
MicroSDHC card slot (32GB max.)
Passive 125KHz RFID tag
RAC – rugged side connector2:
  • Rapid tool-less fitting & removal
  • Unique anti-overtighten design
  • Salt-resistant seal
sDAC – bottom connector:
  • Rapid tool-less quarter-turn twist-lock fitting & removal
  • Connector Protector salt protection
PROGRAMMING CAPABILITYHigh-speed programming
Radio Manager2 compatible
Micro SDHC contents manageable via Radio
Manager2 On-screen programming progress bar


1 New standard (300-01174) & high-capacity (300-01175) batteries, along with the high power Class 3 feature licence, are required to operate the SC20 in high power RF Class 3 mode. Use of older STP batteries will limit SC20 operation to RF Class 3L
2 Compatible with Sepura STP9000 & STP8000 RAC-based accessories
3 Operating at temperature extremes may limit some aspects of operational performance
4 As defined in ETSI EN300 019-2-1 & EN300 019-2-2
5 Connector Protector must be enabled in customisation. An antenna, a battery & a Sepura accessory or sRAC cover must be fitted. Rinse in fresh water to prevent salt crystal build-up
6 Future: please contact Sepura Product Management to discuss your requirements
7 The Man-Down alarm should in no way be regarded as a substitute for compliance with appropriate risk assessment & other safety procedures & practices. To enable Man-Down a software licence is required
8 SDAs must be reformatted for use with an SC20
9 Availability is subject to export licence
10 STP 1+1 chargers shipped since mid-2013 are compatible
11 Existing STP belt clips may adversely affect broadband performance. SC20 belt clips are recommended

STP9000

livrée avec :



Garantie : .

Accessoires pour STP9000

Prix et disponibilité, nous contacter.


    Chargers:
  • Personal rapid charger
  • Vehicle rapid charger
  • 1+1 charger
  • 6+6 desktop charger
  • 12 way battery only charger
  • 24 way battery only charger
  • Two way in-vehicle charger

    Batteries:
  • Standard capacity battery
  • High capacity battery

    Carrying accessories:
  • Stud & belt attachments
  • Carry cases & holsters

    Car kits:
  • Basic car it
  • Complete car kit
  • STP/SC Series Basic Car Kit

    Programming Leads:
  • Serial + USB

  • Équipe de spécialistes

  • Livraison partout dans le monde

  • Support Airtime 7j/7

  • Facturation électronique

  • Contact
  • Orbitics
    Innopolis Hall B
    1149 La Pyrénéenne
    31670 - Labège

  • Nos coordonnées GPS
    N 43°32'43"
    E 1°30'14"
Région Occitanie

Photos, Textes et Prix non contractuels et susceptibles de changer à tout moment et sans préavis.
Copyright © 1998-2024 Orbitica
Dernière modification le 19/01/2022
Les marques et noms de produits sont des marques déposées de leurs détenteurs respectifs.

Certification ISO 9001:2015
