Antennes Harxon Smart Antenna

Les Smart Antennes Harxon intègrent un module récepteur GNSS (UM960 ou UM980) directement dans l'antenne, offrant une solution tout-en-un compacte pour les applications de positionnement RTK haute précision (H : 0.8 cm + 1 ppm / V : 1.5 cm + 1 ppm). Multi-constellations : GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS. Idéales pour UAV, robotique autonome et agriculture de précision. Le modèle HX-ME407A intègre en plus un module 4G, un module LoRa et un MCU pour une solution de positionnement et communication tout-en-un.

Prix sur demande.

SMART ANTENNAS - Tableau comparatif
Référence	Fréquences	Dimensions (mm)	Poids (g)	Photo
HX-ME407A	GPS L1C/A, L2C, L2P(Y), L5 - GLONASS G1/G2 BDS B1I/B2I/B3I/B1C/B2a/B2b - GALILEO E1/E5a/E5b/E6 SBAS L1C/A - 4G 700-960/1710-2690 MHz - LoRa 868/915 MHz	Ф150*27.25	≤ 160

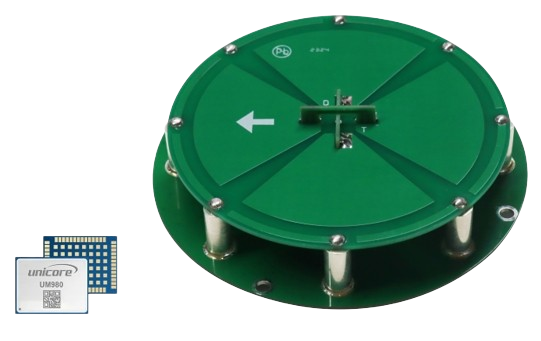

HX-ME402A	GPS L1C/A, L2C, L2P(Y), L5 - GLONASS G1/G2/G3 BDS B1I/B2I/B3I/B1C/B2a/B2b - GALILEO E1/E5a/E5b/E6 QZSS L1C/A, L2C, L5 - NavIC L5 - SBAS L1C/A - L-Band	Ф90*24.4	≤ 80

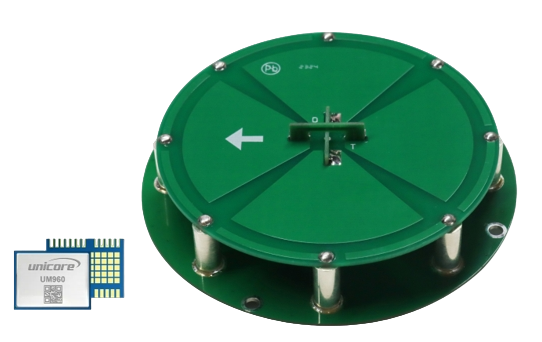

HX-ME401A	GPS L1C/A, L2C, L2P(Y), L5 - GLONASS G1/G2 BDS B1I/B2I/B3I/B1C/B2a - GALILEO E1/E5a/E5b QZSS L1C/A, L2C, L5 - SBAS L1C/A	Ф90*24.4	≤ 80

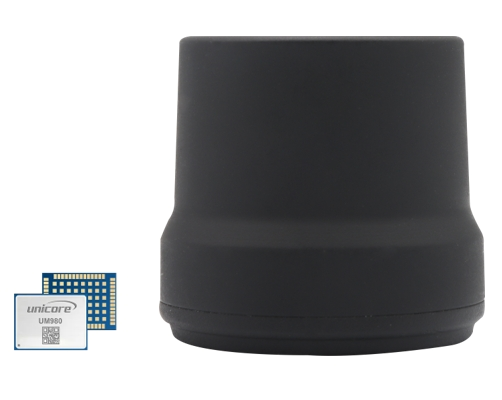

HX-MR401A	GPS L1C/A, L2C, L2P(Y), L5 - GLONASS G1/G2 BDS B1I/B2I/B3I/B1C/B2a - GALILEO E1/E5a/E5b/E6 QZSS L1C/A, L2C, L5 - SBAS L1C/A	Ф48*38	≤ 40

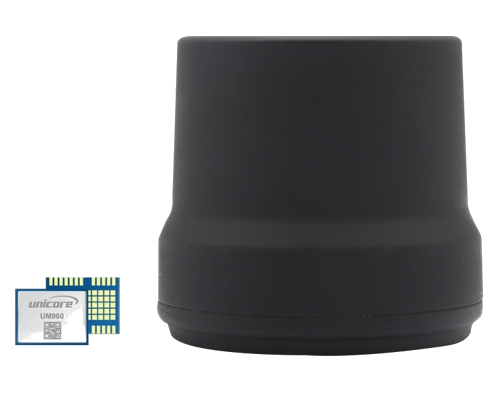

HX-MR402A	GPS L1C/A, L2C, L2P(Y), L5 - GLONASS G1/G2 BDS B1I/B2I/B3I/B1C/B2a - GALILEO E1/E5a/E5b QZSS L1C/A, L2C, L5 - SBAS L1C/A	Ф48*38	≤ 30
HX-ME404A	GPS L1C/A, L2C, L2P(Y), L5 - GLONASS G1/G2 BDS B1I/B2I/B3I/B1C/B2a - GALILEO E1/E5a/E5b/E6 QZSS L1C/A, L2C, L5 - SBAS L1C/A	Ф46*19.2	≤ 15

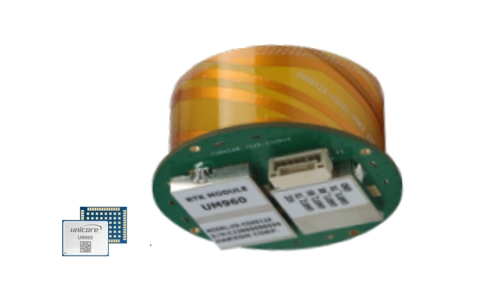

HX-ME403A	GPS L1C/A, L2C, L2P(Y), L5 - GLONASS G1/G2 BDS B1I/B2I/B3I - GALILEO E1/E5a/E5b QZSS L1C/A, L2C, L5 - SBAS L1C/A	Ф46*19.2	≤ 15

SMART ANTENNA	HX-ME407A	HX-ME402A	HX-ME401A	HX-MR401A	HX-MR402A	HX-ME404A	HX-ME403A
GPS	L1C/A, L2C, L2P(Y), L5	L1C/A, L2C, L2P(Y), L5	L1C/A, L2C, L2P(Y), L5	L1C/A, L2C, L2P(Y), L5	L1C/A, L2C, L2P(Y), L5	L1C/A, L2C, L2P(Y), L5	L1C/A, L2C, L2P(Y), L5
GLONASS	G1/G2	G1/G2/G3	G1/G2	G1/G2	G1/G2	G1/G2	G1/G2
GALILEO	E1/E5a/E5b/E6	E1/E5a/E5b/E6	E1/E5a/E5b	E1/E5a/E5b/E6	E1/E5a/E5b	E1/E5a/E5b/E6	E1/E5a/E5b
BDS	B1I/B2I/B3I/ B1C/B2a/B2b	B1I/B2I/B3I/ B1C/B2a/B2b	B1I/B2I/B3I/ B1C/B2a	B1I/B2I/B3I/ B1C/B2a	B1I/B2I/B3I/ B1C/B2a	B1I/B2I/B3I/ B1C/B2a	B1I/B2I/B3I
QZSS		L1C/A, L2C, L5	L1C/A, L2C, L5	L1C/A, L2C, L5	L1C/A, L2C, L5	L1C/A, L2C, L5	L1C/A, L2C, L5
SBAS	L1C/A	L1C/A	L1C/A	L1C/A	L1C/A	L1C/A	L1C/A
NavIC		L5
L-Band		✓
4G / LoRa	✓ (intégrés)
GNSS Module	UM960	UM980	UM960	UM980	UM960	UM980	UM960
Single Point	H : 1.5m V : 2.5m	H : 1.5m V : 2.5m	H : 1.5m V : 2.5m	H : 1.5m V : 2.5m	H : 1.5m V : 2.5m	H : 1.5m V : 2.5m	H : 1.5m V : 2.5m
DGPS		H : 0.4m V : 0.8m	H : 0.4m V : 0.8m	H : 0.4m V : 0.8m	H : 0.4m V : 0.8m	H : 0.4m V : 0.8m	H : 0.4m V : 0.8m
RTK	H : 0.8cm + 1ppm V : 1.5cm + 1ppm	H : 0.8cm + 1ppm V : 1.5cm + 1ppm	H : 0.8cm + 1ppm V : 1.5cm + 1ppm	H : 0.8cm + 1ppm V : 1.5cm + 1ppm	H : 0.8cm + 1ppm V : 1.5cm + 1ppm	H : 0.8cm + 1ppm V : 1.5cm + 1ppm	H : 0.8cm + 1ppm V : 1.5cm + 1ppm
Peak Gain	5 dBi	4.0 dBi	4.0 dBi	2.8 dBi	2.8 dBi	3 dBi	3 dBi
LNA Gain	≥ 26 dB	23 ± 2dB	23 ± 2dB	23 ± 2dB	23 ± 2dB	23 ± 2dB	23 ± 2dB
Noise Figure	≤ 2dB	≤ 2dB	≤ 2dB	≤ 2dB	≤ 2dB	≤ 2dB	≤ 2dB
Polarization	RHCP	RHCP	RHCP	RHCP	RHCP	RHCP	RHCP
Impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Channels	1408	1408	1408	1408	1408	1408	1408
Output Rate	20 Hz	50 Hz	20 Hz	50 Hz	20 Hz	50 Hz	20 Hz
TTFF Cold	≤ 30s	< 12s	< 30s	< 30s	< 30s	< 30s	< 30s
Power	5V	5V 500mW	5V 500mW	3.8 ~ 12V 200mA typ.	3.8 ~ 12V 200mA typ.	5V 500mW	5V 500mW
RF Connector		HY-2.0-AWT-6	HY-2.0-AWT-6	GH1.25-8P	GH1.25-8P	GH1.25-6P	GH1.25-6P
Mounting	4 x M3 Screws	4 x M3 Screws	4 x M3 Screws	3 x M2.5 Screws	3 x M2.5 Screws	4 x M1.6 Screws	4 x M1.6 Screws
Dimension	Ф150*H27.25 mm	Ф90*H24.4 mm	Ф90*H24.4 mm	Ф48*H38 mm	Ф48*H38 mm	Ф46*H19.2 mm	Ф46*H19.2 mm
Weight	≤ 160 g	≤ 80 g	≤ 80 g	≤ 40 g	≤ 30 g	≤ 15 g	≤ 15 g
Protection				IP67	IP67
Op. Temp.	-40 / +85 °C	-40 / +85 °C	-40 / +85 °C	-40 / +70 °C	-40 / +70 °C	-40 / +70 °C	-40 / +70 °C
Storage Temp.	-55 / +85 °C	-55 / +95 °C	-55 / +95 °C	-40 / +70 °C	-40 / +70 °C	-40 / +70 °C	-55 / +85 °C
Humidity	≤ 95%			≤ 95%	≤ 95%	≤ 95%	≤ 95%
